PS800 Drywall Machine

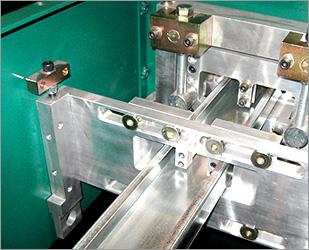

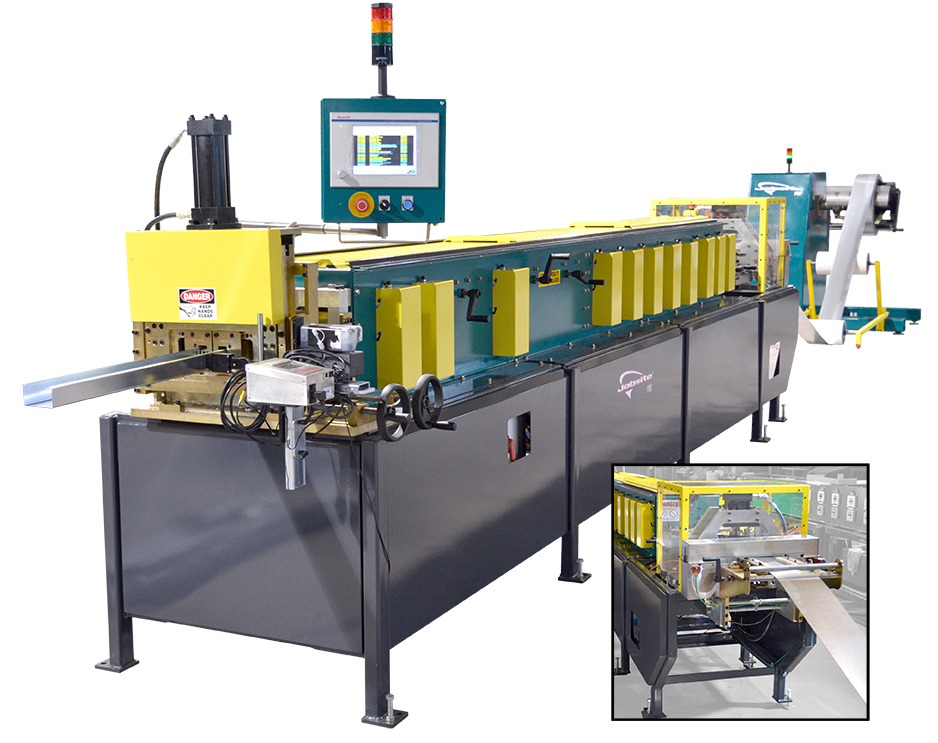

This Jobsite PS800 Drywall machine forms studs that use approximately 20% less material than the standard studs. PS800-light gauge type Steel Stud Roll forming machine makes the profile per the sketch below. This machine roll forms 3 5/8″ and 6″ Studs in a nonstructural  type profile (See sketch below).

This machine is capable of roll forming  steel from 30 to 24 gauge. These studs have a 1 7/16” flange.

Jobsite includes the capability of Knurled surfaces on 24-26 gauge stud and track faces to assist screw fixing by stopping slipping and damage to material applied. The machine will handle minimum thickness of 30 gauge (0.015”) and a maximum thickness of 24 gauge (0.027) and mechanical strength of 57 KSI.

Additional Stud & Track Kit Options:

  • 1 5/8″ (41.3mm) Stud & Track Kit (26 to 20 gauge)
  • Option to Add 2 ½” x 1 7/16″ with a .375 Lip
Get A Quote Watch In Action Watch In Action

Detailed Product Information

Profile

The standard machine roll forms the profile sizes above. Profile options and other steel framing equipment is available:

  • PS800 – 1 5/8″ (41.3mm) Stud & Track Kit Option
  • PS800 – 2 1/2″ (63.5mm) Stud & Track Kit Option

Speed & Efficiency

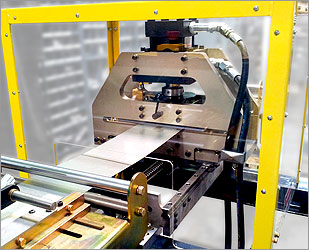

Producing at 75 feet per minute, this is the fastest machine on the market. The newly engineered servo driven punch simultaneously advances and punches with precision accuracy as the material continually moves through the machine. Not only does this dramatically increase the speed of the machine, but also increases the life of the equipment.

Range of Materials

Like always Jobsite equipment is able to run a large range of materials. This machine is capable of roll forming heavy gauge steel from 26 to 14 gauge.

Control and Accuracy

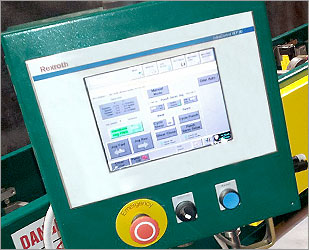

The PS Series steel stud machines are controlled by a Bosch Rex Roth touch screen control and can support 380/460V, 3~/50/60Hz, 30 Amp. The machine is driven by Bosch Rex Roth servo motor main drive allowing precision accuracy and control. This state-of-the-art technology allows the user to easily program, via touch screen control, 1 piece to 10,000 pieces at lengths from 3” and up within 1/32” accuracy. The Jobsite Stud and Track Roll Forming machines can be setup to interface with the Vertex BD Software.

Safety

Each machine comes equipped with sliding safety covers which will disengage the machine when opened and comply with OSHA safety standards. Emergency stop switches are located at each end and safety stack lights on the machine and decoiler indicates equipment in or out of operation.

Durability

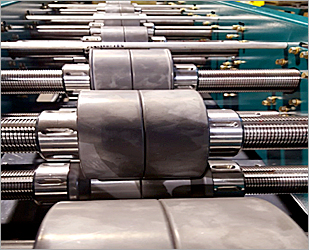

For long life, the machines are engineered with the highest structural integrity and all the forming rollers are Ion Nitride 4130 hardened rollers.


Features

  • Bosch Rexroth controls and drive for accuracy and history of excellent reliability
  • Servo driven punch provides close tolerance accuracy and none stop punching for increased production, with interchangeable tooling for different hole sizes and shapes. Maximum size is 1 1/2″ (38.1mm) X 3 1/2″ (88.9mm) obround
  • Hydraulic shear with quick change dies
  • Nitride Hardened rollers designed for long life for running galvanized steel
  • Material oiler / mister to aid in keeping the rollers clean when running galvanized material
  • Safety interlocks on all sliding covers that meet OSHA requirements
  • Emergency stop buttons on both ends of the machine
  • Safety stack lights on machine and decoiler indicates equipment in operation
  • This machine is capable of roll forming  steel from 30 to 24 gauge
  • 24 month limited warranty on Jobsite manufactured parts, excluding wearable parts, (shear/punch parts) and manufactures warranty on purchased parts

PS 800 Drywall Specifications

  • Length: 245″ (6.22 m)
  • Length with options: 305” (7.75m)
  • Width: 44″ (1.12 m)
  • Height: 65″ (1.65 m)
  • Weight: 5,900 Pounds (2,676 kg)
  • Equipment Power Requirement: 380/460V, 3ph/50/60Hz, 30 Amp
  • Main Servo Drive: 203.5 in lbs/ 23.0 NM continuous torque (x3 peak)
  • Punch Servo Drive: 70.8 in lbs/8.0 NM continuous torque (x3 peak)

Options

  • Internet connectable diagnostics available to aid in trouble shooting
  • Vertex BD Framing Software
  • Stand-Alone Crane System
  • Semi-Auto Manual Unload Table for stud and track roll formers
  • Any material size Imperial or Metric
  • 6,000lb Single Reel De-coiler 17”- 24” (0.430m – 0.610m)
  • Dual Reel De-coiler
  • Ink Marking System
  • Containerized machine

Ready to Get A Quote?

Call or contact our sales representative today! We will send you information and answer any question you have in a friendly and prompt manner.
